Classic Mercedes with Modern Comfort – Mercedes-Benz W114 A/C Modernisation
Classic cars are not only meant to be admired. They should also be enjoyable to drive — even in the middle of summer traffic.
At Widi Automotive, one of our recent projects perfectly demonstrated how modern comfort can be integrated into a classic vehicle without sacrificing its original character. The car in question was a 1973 Mercedes-Benz W114, which arrived at our workshop for a partial restoration and a complete air conditioning system modernisation.
A Classic Mercedes with Hidden Problems
At first glance, the car looked fairly decent. However, as with many classic cars, the real condition only became visible after a more detailed inspection.

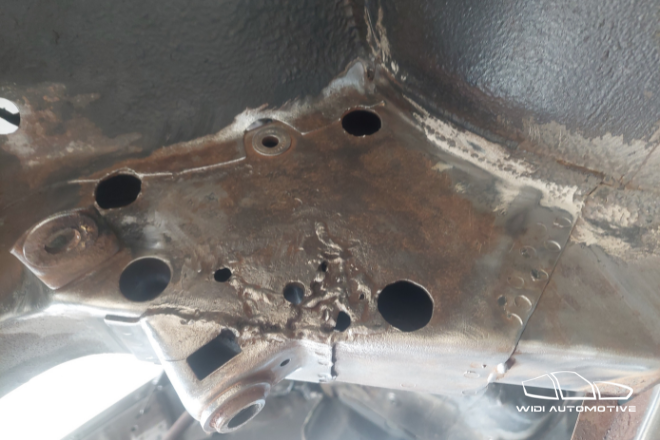

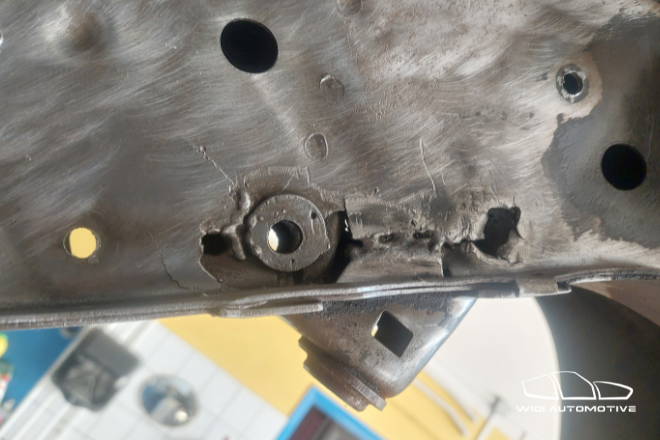

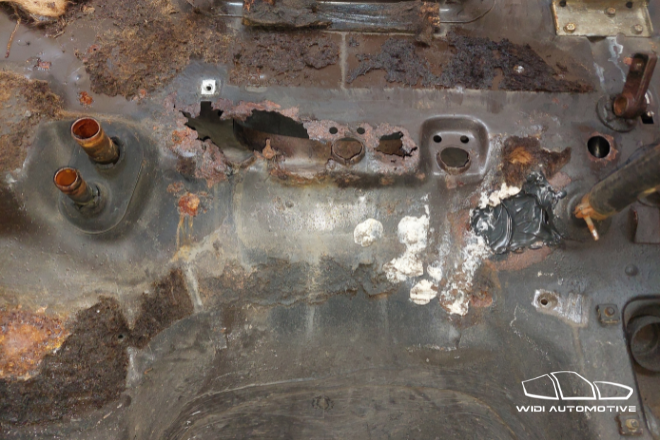

The underbody showed severe rust damage, several old repairs had been poorly executed, and many mechanical and electrical details required serious attention. The vehicle had also previously been used as a donor car before someone attempted to rebuild and sell it.
One of the owner’s main requests was very clear:
a reliable, properly functioning air conditioning system
that could be used confidently in real summer conditions.
And this is where the real challenge began.
Why Oldtimer and Youngtimer A/C Systems Often Fail?
Many classic and youngtimer vehicles originally came with air conditioning systems designed decades ago. Over the years these systems are often:
repaired incorrectly,
or simply left incomplete.
Parts wear out and deteriorate over time — especially the compressor.
and one of the most important that they were designed using different refrigerant that is no longer allowed and available
This Mercedes W114 was no exception.
Several A/C components were completely missing, including the compressor, compressor bracket, condenser, tubing, and the entire climate control wiring harness.

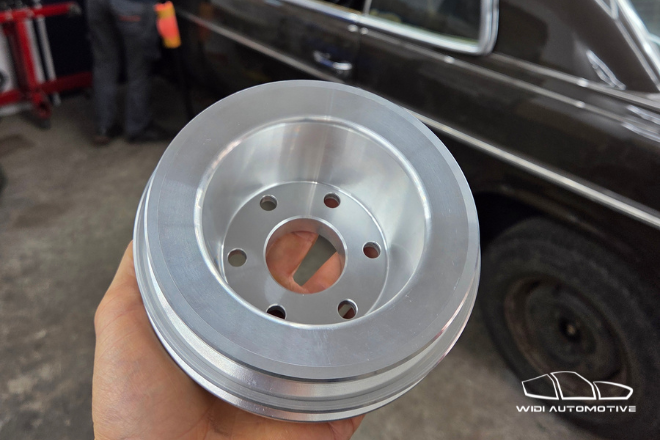

We managed to source an original compressor bracket, but because the V-belt configuration differs between A/C and non-A/C engines, some additional engineering work was required. We modified the power steering pump bracket and manufactured a custom crankshaft pulley setup to make the system function properly while maintaining a factory-style appearance.

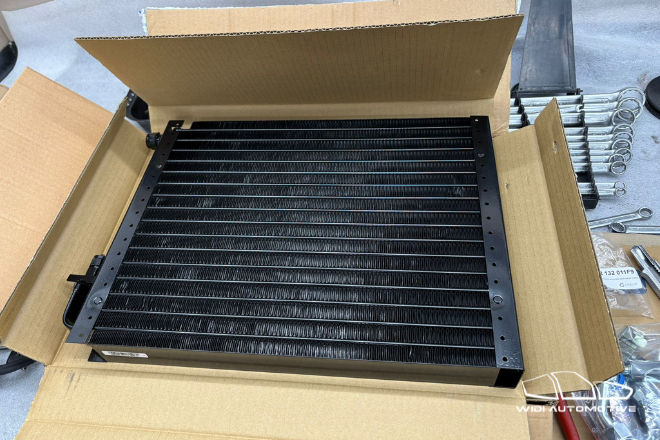

We also sourced a new condenser with dimensions and visual proportions very close to the original unit.
Since replacement wiring harnesses are no longer available for these cars, we recreated the complete A/C wiring loom ourselves and carefully integrated it into the original factory harness.
Inside the climate control box, we discovered another major issue: failed vacuum actuators. The original diaphragms were damaged, and replacement parts are no longer available anywhere. To solve this, we engineered custom linkages and mechanisms using actuators with very similar dimensions. Even though these components remain hidden behind the dashboard, preserving the original appearance and functionality was still extremely important to us.
The entire A/C system was thoroughly cleaned, pressure-tested, and prepared for modern refrigerant compatibility.
We also modified part of the engine idle control setup to compensate for the additional load created by the air conditioning system. This ensures stable idle quality and reliable operation, even in hot summer traffic with the A/C running.
The goal was simple:
make the system reliable and usable while keeping the car visually factory-correct.
Improving Cooling Performance for Modern Conditions
One of the biggest weaknesses of older A/C systems is poor cooling performance in traffic.
At low engine RPM, airflow through the condenser becomes insufficient, which dramatically reduces cooling efficiency — exactly when you need cold air the most.
To solve this problem, we installed a stronger electric condenser fan. This relatively subtle modification significantly improves cooling performance in real-world summer driving conditions.
Another common issue with old systems is refrigerant leakage and compressor wear caused by decades of use. In this case, several important components were missing entirely, so we installed a brand-new compressor, expansion valve, and receiver-drier compatible with modern R134a refrigerant.
This leads to another important challenge with classic A/C systems:
older refrigerants are now obsolete, environmentally restricted, or banned entirely. Modern R134a refrigerant requires different oils and system compatibility, meaning you cannot simply refill an untouched old system with modern gas.
The entire system must first be properly cleaned and converted using compatible components and lubricants.
Preserving the Original Mercedes-Benz Character
One of the most important aspects of this project was preserving the authentic interior and engine bay appearance.
Inside the cabin. Everything stays the same, we just repaired the original system.
no modern buttons were added,
no aftermarket switches appeared,
and all controls continued to operate through the original dashboard system.
In the engine bay all new parts are visually the same or 95% similar to the original parts.
This philosophy is extremely important in classic car restoration and A/C modernisation.
At Widi Automotive, we believe modern upgrades should improve usability — not destroy the character of the vehicle.
Additional Work Performed During the Project
Besides the A/C reconstruction and modernisation, several additional tasks were completed during the project:
partial bodywork restoration
complete suspension and brake system restoration
engine revision, maintenance and tuning
mechanical inspection and refinement
cooling system improvements
A Usable Classic Car
The final result is a classic Mercedes-Benz that retains its original feel while becoming significantly more comfortable and usable in modern driving conditions.
Projects like this represent an increasingly important direction in the classic car world:
making oldtimer and youngtimer vehicles genuinely enjoyable to use today — without losing their soul.
Because a classic car should not only look good standing still.
It should also survive a summer traffic jam without boiling its owner alive.
